Wichard Self-Locking D-Shackle – 12 mm (15/32 in) Marine-Grade Stainless Steel

Description

Self-Locking D Shackle – 12mm Diameter – 15/32″

Features:

• Self-locking D shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e…)
• CE marking

Applications:

• Standard applications of the shackle
• Attachment applications: blocks, head

Specifications:

• Materials: 316 stainless steel grade
• Working load: (lb) 4580 / (kg) 2080
• WLL: (lb) 2640 / 1200 (kg)
• Breaking load: (lb) 13220 / (kg) 6000
• Weight: (lb) 0.425 / (g) 193

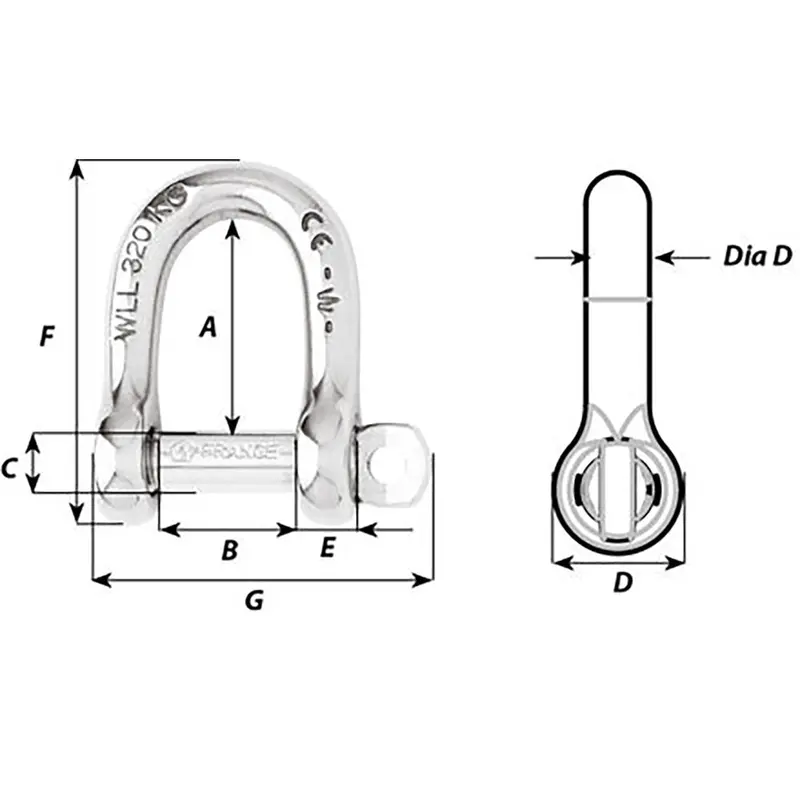

Dimensions:

• A: (inch) 1-21/32″ / (mm) 42
• B: (inch) 1-1/16″ / (mm) 27
• C: (inch) 15/32″ / (mm) 12
• D: (inch) 15/16″ / (mm) 24
• D diameter: (inch) 15/32″ / (mm) 12
• E: (inch) 7/16″ / (mm) 11
• F: (inch) 2-7/8″ / (mm) 73
• G: (inch) 2-7/16″ / (mm) 62

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Quick Guide (pdf)
