Wichard Round Diamond Pad Eye — 79mm Length with M6 Threaded Fastener

Description

Diamond Pad Eye – Round – 79mm Length (3-7/64″) – M6 Screw

Features:

• Mechanical resistance versus corrosion resistance ratio
• Optimized dimensions
• For M6 screw

Applications:

• Mast foot blocks
• Reefing blocks
• Various fastenings

Specifications:

• Materials: Duplex stainless steel grade
• Working Load: (lb) 6393.4 / (kg) 2900
• Breaking Load: (lb) 17196 / (kg) 7800
• Weight: (lb) 0.315 / (g) 143
• W.L 1 (90 degrees): (lb) 6393.4 / (kg) 2900
• W.L 2 (45 degrees): (lb) 5732 / (kg) 2600
• W.L 3 (0 degrees): (lb) 5291 / (kg) 2400
• B.L 1 (90 degrees): (lb) 17196 / (kg) 7800
• B.L 2 (45 degrees): (lb) 15211.9 / (kg) 6900
• B.L 3 (0 degrees): (lb) 13889 / (kg) 6300

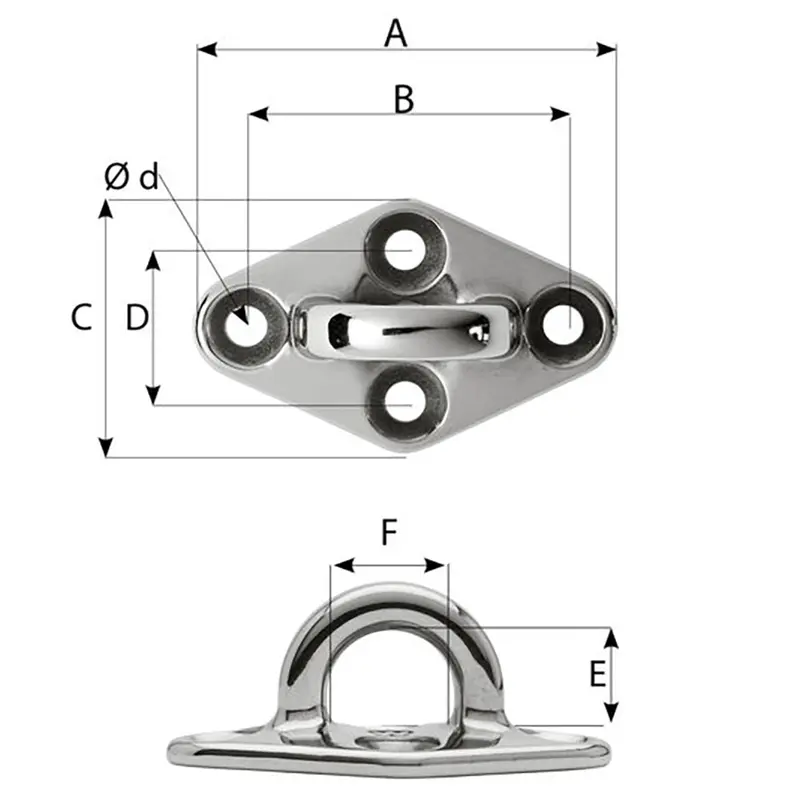

Dimensions:

• A: (inch) 3 7/64″ / (mm) 79
• B: (inch) 2 23/64″ / (mm) 60
• C: (inch) 1 31/32″ / (mm) 50
• D: (inch) 1 17/64″ / (mm) 32
• E: (inch) 47/64″ / (mm) 18.5
• F: (inch) 55/64″ / (mm) 22

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Quick Guide (pdf)
