Wichard HR Safety Snap Hook – 100mm (3-15/16″) Locking Mechanism for Critical Applications [2382W]

Description

HR Safety Snap Hook – 100mm Length – 3-15/16″

Features:

• HR 17.4 PH stainless steel grade forged snap hook
• Various applications on board
• Outstanding working and breaking loads
• Modern design

Applications:

• Various uses on board: fastening applications

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb)3700 / (kg) 1680
• Breaking load: (lb) 8810 /  (kg) 4000
• Weight: (lb) 0.368 / (g) 167

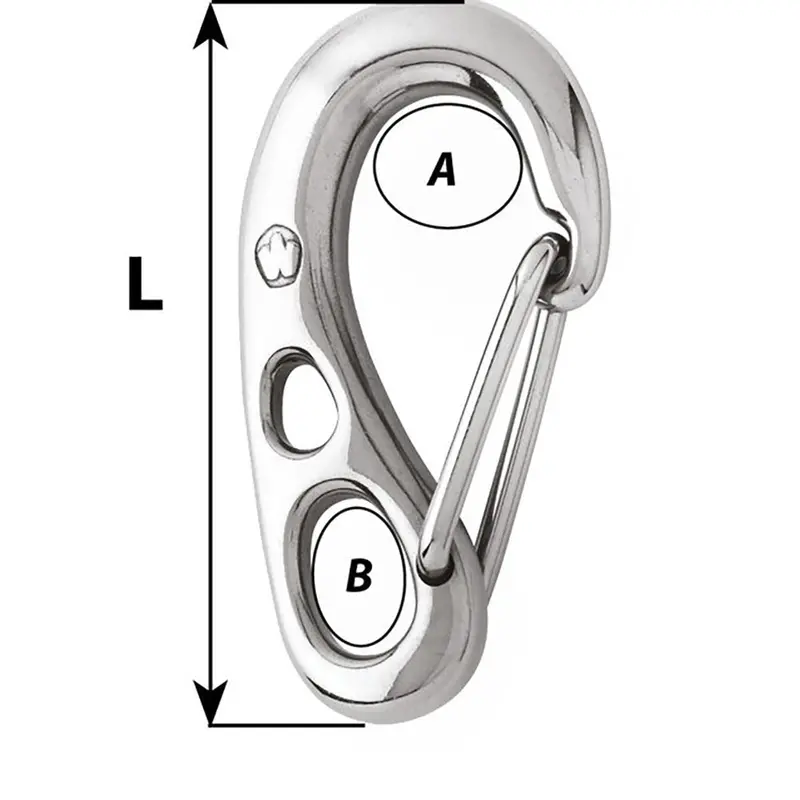

Dimensions:

• A: (inch) 43/64″ / (mm) 17
• B: (inch) 35/64″ / (mm) 14
• Length: (inch) 3 15/16″ / (mm) 100

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

Quick Guide (pdf)
