Wichard 8mm Captive-Pin Twisted Shackle (5/16″) – Model 1424W

Description

Captive Pin Twisted Shackle – Diameter 8mm – 5/16″

Features:

• Captive pin twisted shackle forged in grade 316L stainless steel
• The pin is connected to the body at all times even when opened
• The pin is locked into one of the indentations
• No risks of loose due to vibrations
• Outstanding working and breaking loads
• Single-handed operation for more safety
• Part #1424 is not suitable for lifting applications

Applications:

• Perfect for application where a 90° angle twist setup is required
• Often used to attach an unarticulated part (block on a rail) or on purchases

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 2200
• Breaking load (lb) 8150
• Weight (lb) 0.198

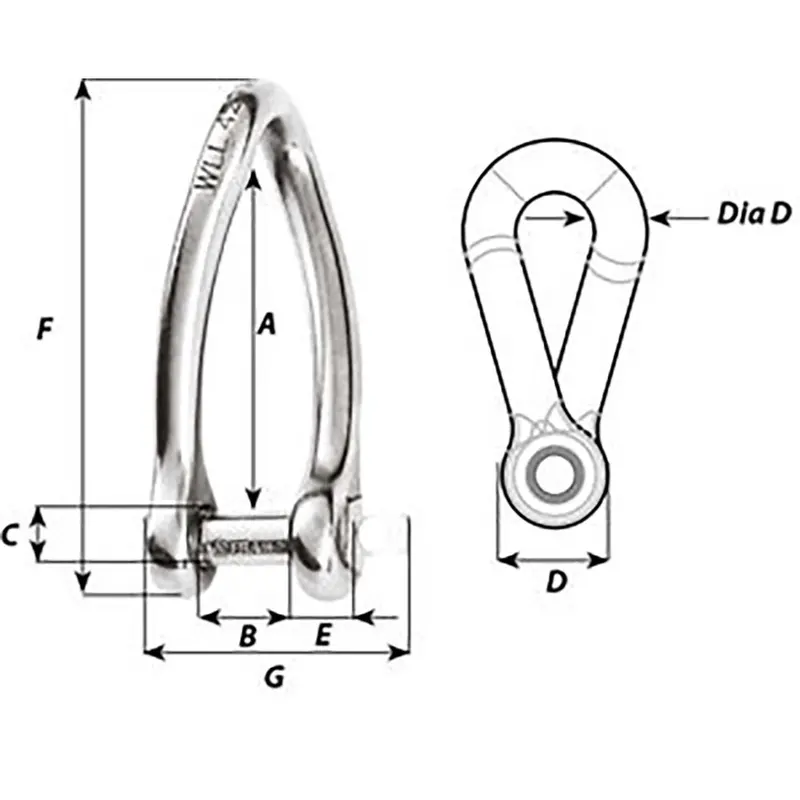

Dimensions (see 2nd image):

• A (inch) 2-21/64″
• B (inch) 5/8″
• C (inch) 23/64″
• D (inch) 45/64″
• D diameter (inch) 5/16″
• E (inch) 5/16″
• F (inch) 3-5/32″
• G (inch) 1-21/32″
