Wichard 6mm Captive-Pin Long D-Shackle (1/4″) – Model 1413W

Description

Captive Pin Long D Shackle – Diameter 6mm – 1/4″

Features:

• Captive pin long “D” shackle forged in grade 316L stainless steel
• The pin is connected to the body at all times even when opened
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads

Applications:

• Standard applications of shackle requiring more length
• Attachment applications: blocks, head…

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 1490
• WLL (lb) 970
• Breaking load (lb) 4850
• Weight (lb) 0.088

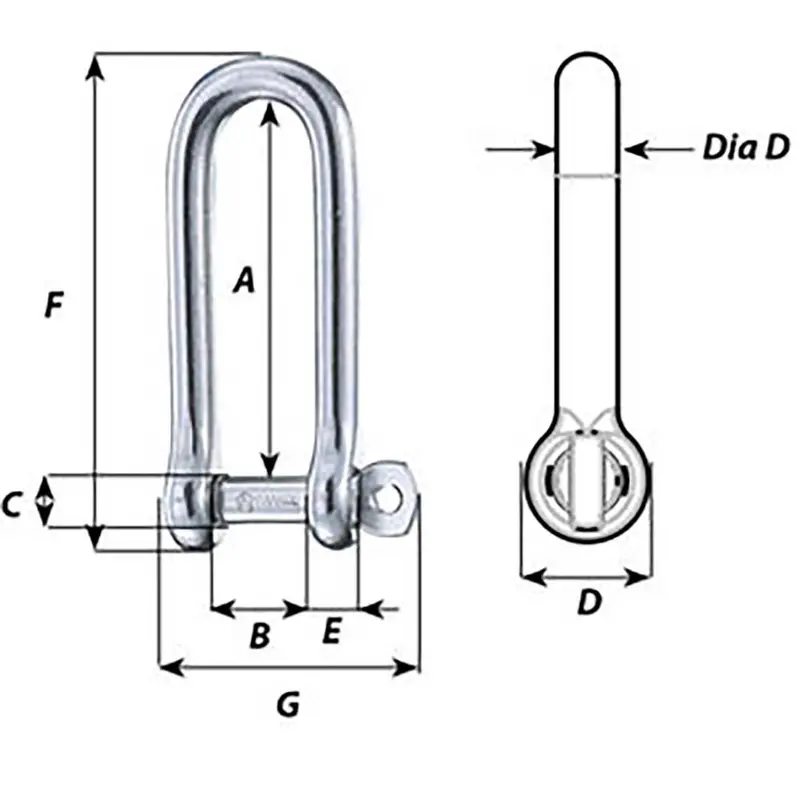

Dimensions (see 2nd image):

• A (inch) 1-13/16″
• B (inch) 15/32″
• C (inch) 9/32″
• D (inch) 35/64″
• D diameter (inch) 15/64″
• E (inch) 15/64″
• F (inch) 2-31/64″
• G (inch) 1-17/64″
