Trident Marine 90° Wet Exhaust Elbow – 6″ ID, EPDM Rubber, Black Molded, Includes 4 Stainless T-Bolt Clamps (TRL-690-S/S)

Description

6″ ID 90-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

Trident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6” I.D. or bigger have molded reinforcing ribs on the outside.

Features:

• Four stainless steel clamps are included
• This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging
• Exceeds (SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards)
• Black high-temp EDPM rubber

Construction:

• Color: Black
• Reinforcement: Reinforcing ribs on 6” I.D. and above
• Temperature Range: up to 250°F (121°C)

Specifications:

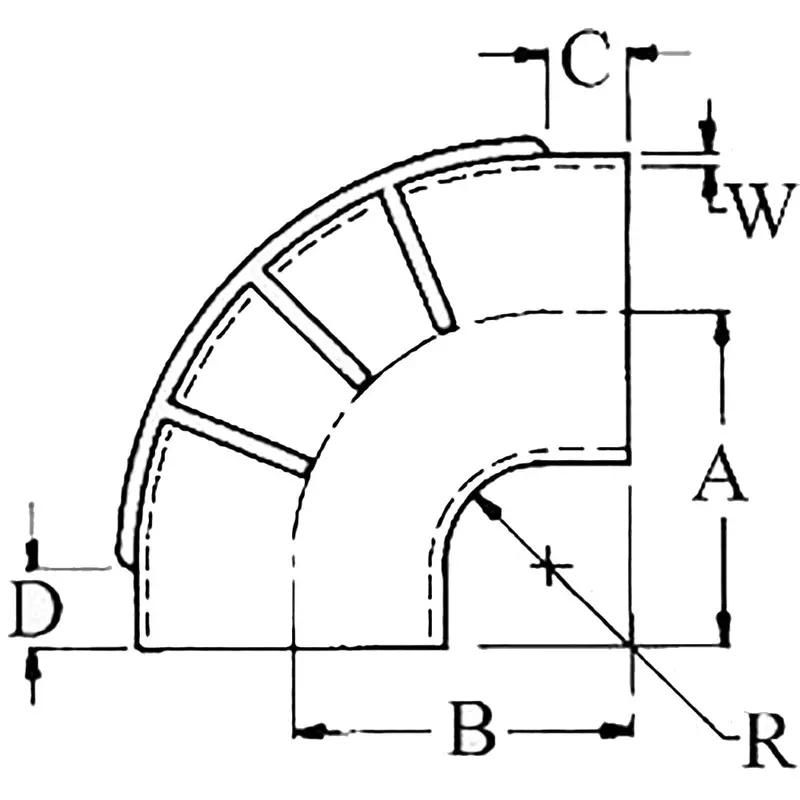

• Inner Diameter: (inch) 6” / (mm) 152.4
• A: (inch) 7″ / (mm) 178
• B: (inch) 7” / (mm) 178
• C: (inch) 2.25” / (mm) 57
• D: (inch) 2.25” / (mm) 57
• R: (inch) 1.75” / (mm) 44.4
• W: (inch) 0.25” / (mm) 6.4
• Elbow Degree: 90 degrees

Specifications:

• ID Diameter (inches): 6″
• Box Dimensions: 8″H x 10″W x 15″L WT: 4.4 lbs
• UPC: 704917000435
