Trident Marine 45° Wet Exhaust Elbow – 3″ ID, EPDM Rubber, Black Molded, Includes 4 Stainless T-Bolt Clamps (TRL-345-S/S)

Description

3″ ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

Trident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6” I.D. or bigger have molded reinforcing ribs on the outside.

Features:

• Four stainless steel clamps are included
• This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging
• Exceeds (SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards)
• Black high-temp EDPM rubber

Construction:

• Color: Black
• Reinforcement: Reinforcing ribs on 6” I.D. and above
• Temperature Range: up to 250°F (121°C)

Specifications:

• Inner Diameter: (inch) 3” / (mm) 76.2
• Outer Diamter: (inch) 3.5″ / (mm) 88.9

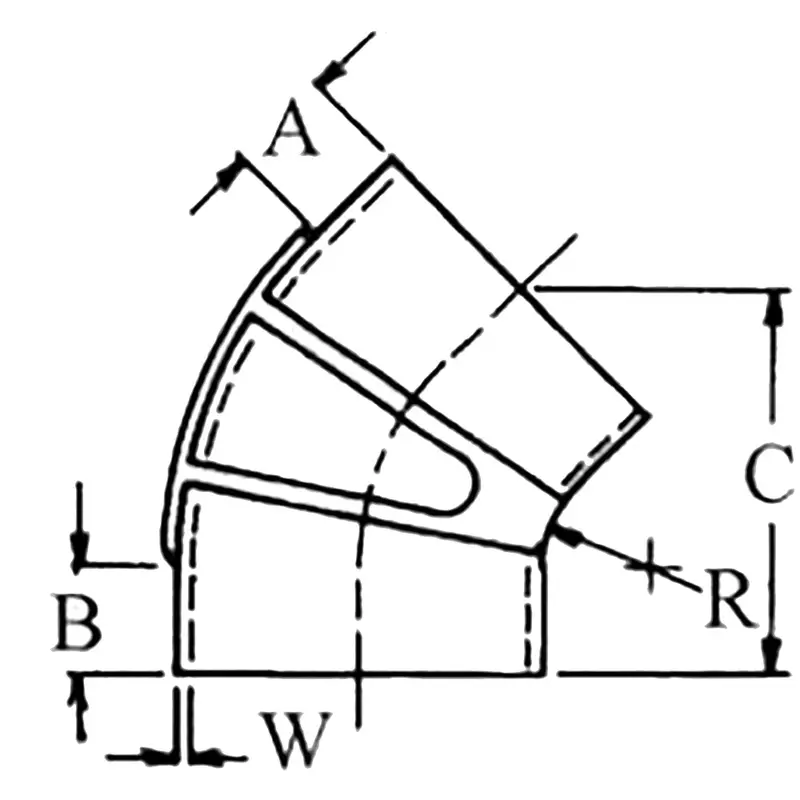

• A: (inch) 1.5” / (mm) 38.1
• B: (inch) 1.5” / (mm) 38.1
• C: (inch) 5.5” / (mm) 139.7
• W: (inch) 0.25” / (mm) 6.35
• Elbow Degree: 45 degrees
• Weight: (Lb/Ea) 0.6 / (Kg/Ea) 0.27

Specifications:

• ID Diameter (inches): 3″
• Box Dimensions: 6″H x 7″W x 7″L WT: 1.5 lbs
• UPC: 704917000442

Quick Guide (pdf)
