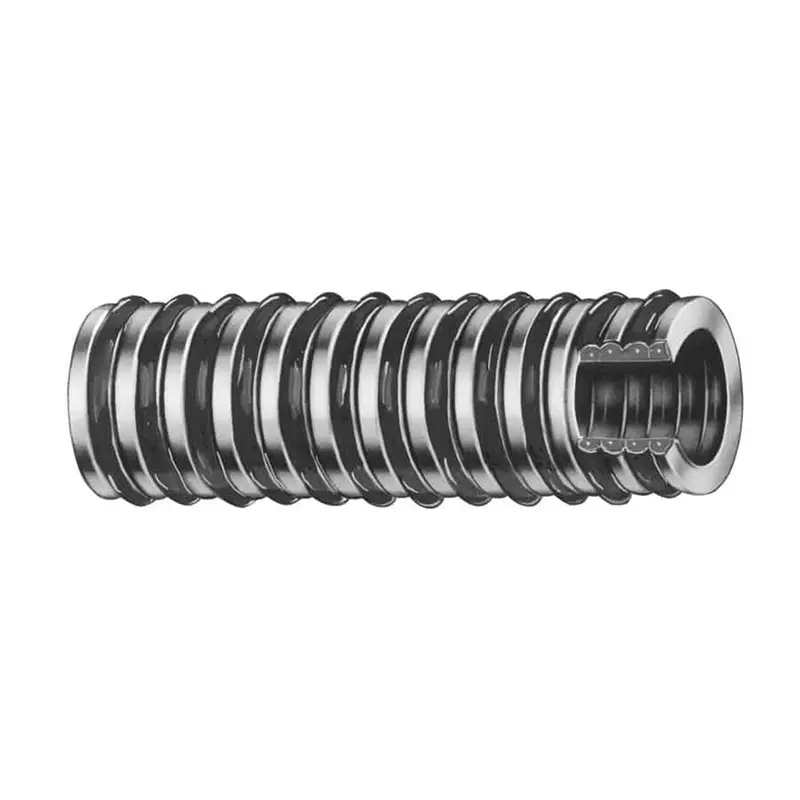

Trident Marine 1-1/2″ Vacuum-Resistant XHD Bilge and Livewell Hose – Rigid PVC Helix, Black, Sold by the Foot

Description

1-1/2″ VAC XHD Bilge & Live Well Hose – Hard PVC Helix – Black – Sold by the Foot

Trident VAC XHD Bilge and Live Well Hose. Helical PVC reinforcement provides excellent flexibility and bend radius for live well and heavy-duty bilge applications. It has a smooth outer surface to allow for easy clamping. The excellent bend radius of this product gives you the flexibility of a rubber hose making installations a breeze.

Features:

• Sold by the foot
• 149 series of hoses is extra flexible

Application:

• Bilge and live well hose

Specifications:

• Tube & Cover: Hard PVC helix
• Color: Black
• Reinforcement: PVC Helix
• Temperature Range: 10°F-120°F (-12°C-48°C)
• Inner Diameter: (inch) 1-1/2″ / (mm) 38.1
• Outer Diameter: (inch) 1.792″ / (mm) 45.5
• Working Pressure: (Psi Vac In./Hg) 28 / (Bar) 1.93
• Weight: (Lb./ 50 ft.) 22 / (Kg/m) 9.98
• Bend Radius: (inch) 4″ / (mm) 101.6

*Burst Pressure is 4 x Working Pressure

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• ID Diameter (inches): 1-1/2″
• Length (Feet): Sold By The Foot
• Box Dimensions: 3″H x 3″W x 12″L WT: 0.46 lbs

Quick Guide (pdf)
