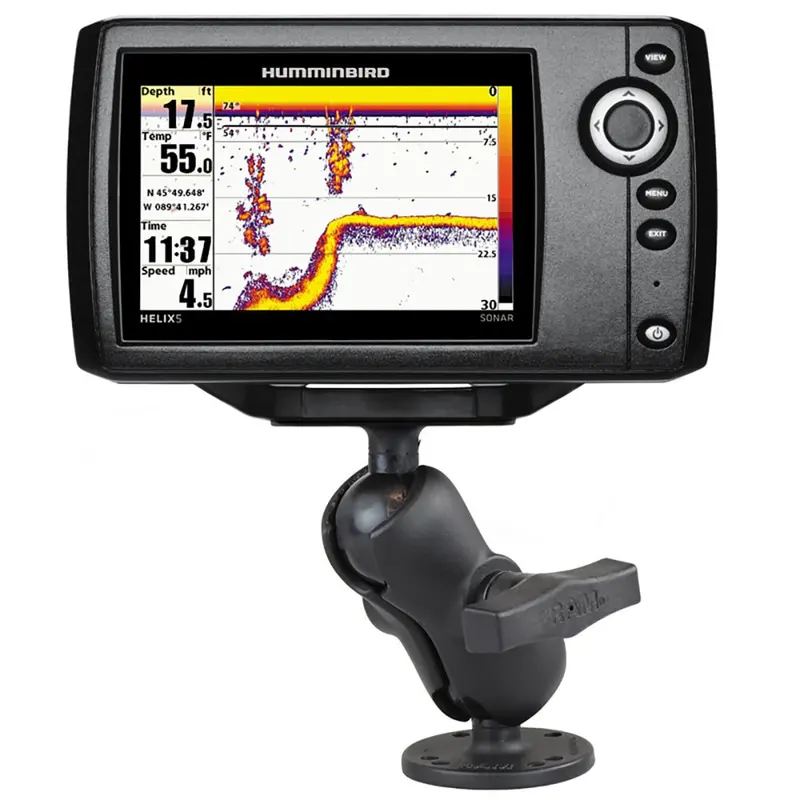

RAM 1.5-Inch Ball Mount with 2.5-Inch Round Base and Short Arm for Humminbird HELIX 5

Description

1.5″ Ball Mount w/2.5″ Round Base, Short Arm & 1.5″ x 3″ Plate f/Humminbird Helix 5 Only

The RAM-202-153-B-202U consists of a round 2.5″ diameter round base (Universal AMPs Hole Pattern), short double socket arm and 1.5″ x 3″ rectangular base. The rectangular base contains four holes with a center to center pattern of 1″ x 2.5″. For most applications, mount will support up to ten pounds.

Features:

• Compatible Devices: Humminbird Helix 5
• Center to Center Hole Pattern: 1″ x 2.5″
• Weight Capacity: 10 lbs.
• Overall Height: 5.225″
• Material: Powder Coated Marine Grade Aluminum
• Ball Size: 1.5″ Rubber Ball Size
• Note: The “U” in the part number reflects product packaged in poly bag. Hardware for mounting to device not included with purchase.
• Weight: 0.19 lbs.
