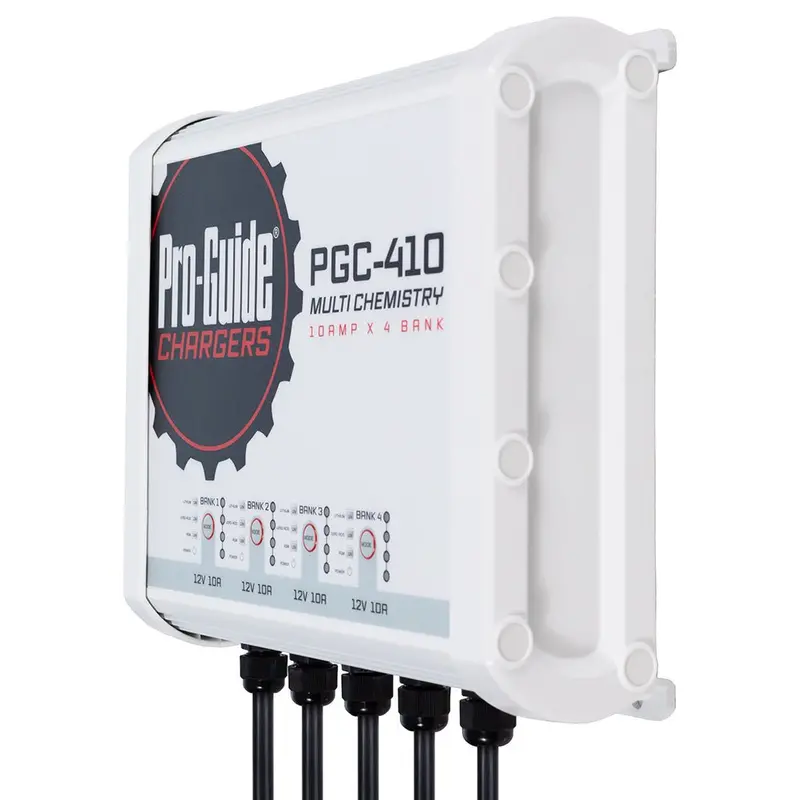

Pro-Guide 4-Bank 12V 40A Onboard Marine Battery Charger (PGC-410)

Description

4 Bank On-Board Battery Charger – 12V – 40-Amp

The Pro-Guide PGC-410 is a 12V Lead Acid / AGM / Lithium on-board battery charger.

Each Bank can select one of three charge profiles, and allows the consumer to mix and match for their optimum setup.

Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or hold the button for (3-5) seconds to enter a manual Activation Mode.

The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each battery’s state of charge on a specific timeline, ensuring that you’ll be fully charged for your next adventure.

With over 40 years of experience, Pro-Guide is proud to stand behind this charger with a 2 Year Free and 4 Year Total Warranty.

Protection:

• Output Over-Voltage
• Output Over Current
• Output Short Circuit
• Output Reverse Polarity
• Over Temperature

Input:

• Input Voltage: AC 110-120V
• Frequency: 60Hz
• Input Current: <6A

Specifications:

• Battery Type: Lead Acid/AGM/Lithium
• Output Voltage: DC 12V x 4
• Max Output Voltage: 14.1-14.3 for Lead Acid Battery, 14.3-14.7 for AGM Battery, & 14.4-14.7 for Lithium Battery
• Output Current: 10A  x4
• Length: 10.71″
• Width: 9.96″
• Height: 3.86″
• Weight: 18.7 lbs
• IP Rating: 68

Specifications:

• Charger Input – Voltage: 120v
• Charger Output – Amps: 40a
• Charger Output Voltage: 12v
• Charging Banks: 4
• Portable: No
• Box Dimensions: 8″H x 14″W x 14″L WT: 19.5 lbs
• UPC: 810145910771
