Description

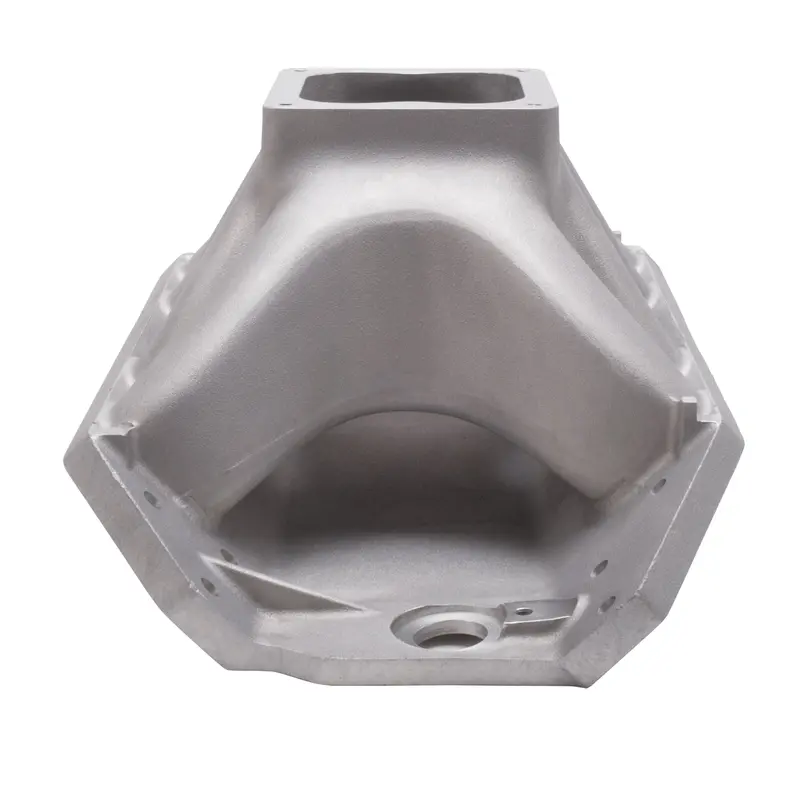

Edelbrock part #28002 Big Victor 2 Spread-Port Tall-Deck intake manifold is designed for large cubic-inch or high rpm drag racing big-blocks with Edelbrock Big Victor, Dart Big Chief or Brodix Big Duke cylinder heads, this manifold has an average runner area of approximately 4.75 sq. in. The port exits have been reduced to accommodate the wide variety of intake port sizes and require port matching. The runners have a minimum corner radius of .500″ from the plenum to the exit allowing the popular oval port shape to be used. The outside runners are shorter and straighter than competitor’s manifolds and the plenum is longer front to back. These features, combined with approximately 5% taper in runner cross-sectional area, give better top end horsepower while maintaining consistency and throttle response off the stop. All applications are equipped with a 4500 Series flange and will accept 2.25″ throttle body butterflies without a spacer or modification.
Installation Instructions
Specifications:
| Basic Operating RPM Range | 3500-8500 |
| Center Maximum Height | 9.530 |
| CNC Ported | No |
| Cylinder Head Type | Big Chief |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Big-Block Race |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Big Victor 2 Spread-Port Tall Deck Intake Manifold for Big-Block Chevrolet |
| Description_FAB | Better Top End Horsepower and Consistency |
| Description_FAB | Crisp Throttle Response off the Stop |
| Description_FAB | For 3500 to 8500 RPM High-Performance Engines |
| Description_FAB | For Large CID or High RPM Drag Racing Big Blocks |
| Description_FAB | Require Port Matching and Can Use Oval Ports |
| Description_FAB | Use Appropriate 4500-Series Carburetor |
| Description_FAB | Use for 10.2 in. Deck Height Engines |
| Description_FAB | Use with Dart Big Chief Cylinder Heads |
| Description_INV | Big Victor 2 10.2 Deck |
| Description_KEY | 28002; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Big Victor 2 Spread-Port; Satin |
| Description_LAB | Big Victor 2 Spread-Port, Tall Deck Intake Manifold for Big-Block Chevy |
| Description_LAB | Big Victor 2 Spread-Port; Tall Deck Intake Manifold for Big-Block Chevy |
| Description_MKT | Edelbrock part #28002 Big Victor 2 Spread-Port Tall-Deck intake manifold is designed for large cubic-inch or high rpm drag racing big-blocks with Edelbrock Big Victor, Dart Big Chief or Brodix Big Duke cylinder heads, this manifold has an average runner area of approximately 4.75 sq. in. The port exits have been reduced to accommodate the wide variety of intake port sizes and require port matching. The runners have a minimum corner radius of .500″ from the plenum to the exit allowing the popular oval port shape to be used. The outside runners are shorter and straighter than competitor’s manifolds and the plenum is longer front to back. These features, combined with approximately 5% taper in runner cross-sectional area, give better top end horsepower while maintaining consistency and throttle response off the stop. All applications are equipped with a 4500 Series flange and will accept 2.25″ throttle body butterflies without a spacer or modification. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| Description_TRA | Carb recommendations: Use appropriate 4500 Series racing carburetor. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-9.53″, B-9.53″ |
| Description_TRA | Recommended intake gasket: Fel-Pro #1298. |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: Fel-Pro # 1298. • Manifold height: A-9.53in.; B-9.53in. • Carb recommendations: Use appropriate 4500 Series racing carburetor. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| Emission | Without EGR |
| Engine Make/Size | Chevy Big Block (396-502) |
| finish | Satin |
| Flange Type | 4500 |
| Front Maximum Height | 9.530 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 15.5 |
| length | 24.25 |
| LTL | N |
| Material | Aluminum |
| Number of Carbs | One |
| Position | N/A |
| Rear Maximum Height | 9.530 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range | 3500-8500 |
| Series | Victor |
| Single Or Dual Plane Type | Single |
| Usage | Racing |
| Vehicle Model | Chevrolet |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 41.0 |
| width | 15.25 |
