Blue Sea Systems 7517 P12 Battery Charger Display Module – Real-Time Monitoring [7517]

Description

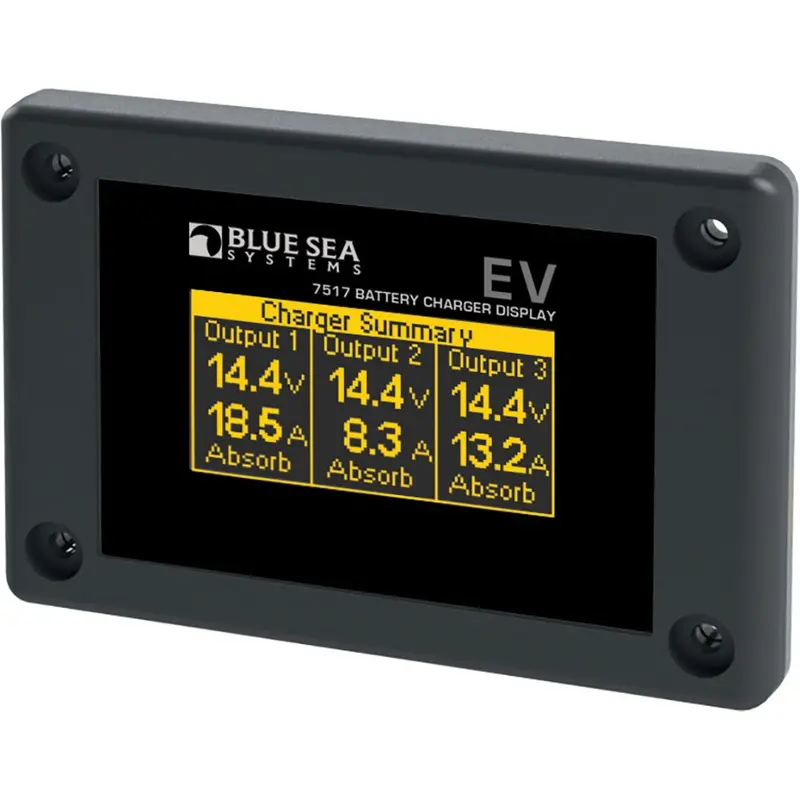

P12 Battery Charger Display
Intuitive Battery Monitoring
The EV Battery Charger Display provides two options to monitor your battery banks. It can display a graphical representation of voltage for 1 to 3 battery banks with or without connection to a P12 Battery Charger. When connected to a P12 Battery Charger it can display the charger’s Summary screen, displaying voltage, current charging stage, and faults from the charger.
Features:

• Drop in replacement for traditional rectangular displays
• Automatically detects 1-3 battery banks
• AC charge indication verifies that power is connected and the battery charger is charging
• Plain language fault indication relays if there is a fault with the battery charger
• Dip switch selectable screen configuration allows the display to show voltage bar graphs or the P12 Battery Charger summary screen
• Displays voltage bar graphs even when AC power is not present
• Optional standby mode shuts off screen after 4 hours of inactivity
• Automatic ON based on motion with integrated knock sensor
• Bright, daylight readable, OLED display

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Charger Output Voltage: 12v
• Charger Output – Amps: 25a
• Charging Banks: 3
• Portable: No
• Charger Input – Voltage: 120/240v
• Box Dimensions: 1″H x 5″W x 6″L WT: 2 lbs
• UPC: 632085075170
