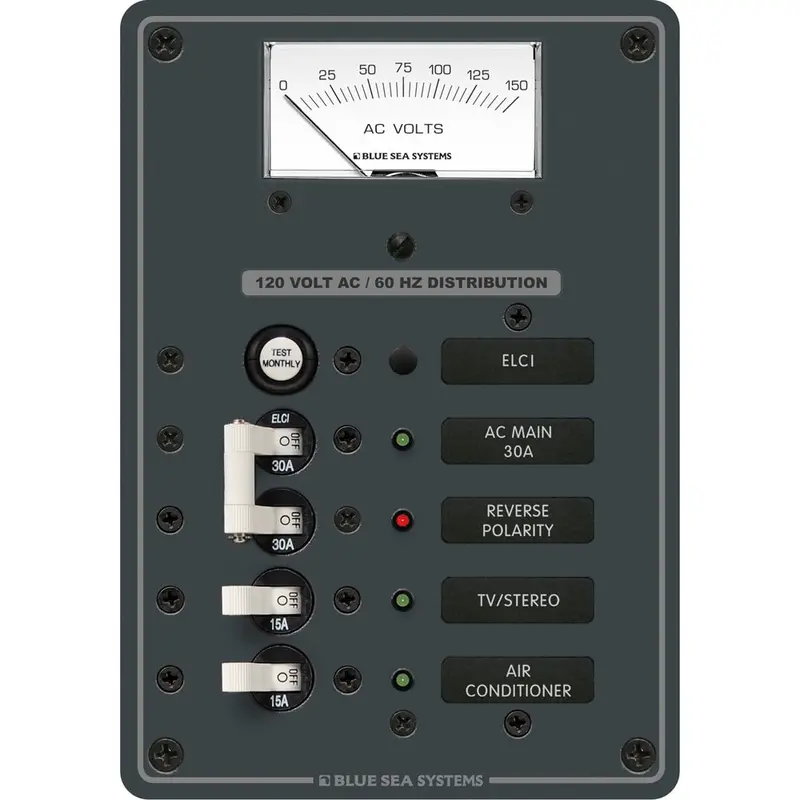

Blue Sea ELCI GFCI AC Panel — 5-Circuit Safety Hub (Model 8101)

Description

ELCI Main 30A Double Pole + 2 Positions

• One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate – 30 mA
• ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection
• Red ” Reverse Polarity” LED
• All circuit label positions are backlit
• “ON” indicating LEDs

Specifications
Positions 5
Nominal Voltage 120V AC
Leakage Trip Amps 30mA
Height 5.25″ (133.35mm)
Width 7.50″ (190.5mm)
Depth 3.50″ (88.9mm)
Weight 2.25lb (1.02kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AC/DC: AC
• Max Breaker Quantity: 5
• Voltage: 120v
• Box Dimensions: 5″H x 9″W x 12″L WT: 2.55 lbs
• UPC: 632085081010

Quick Guide (pdf)
Owner’s Manual (pdf)
